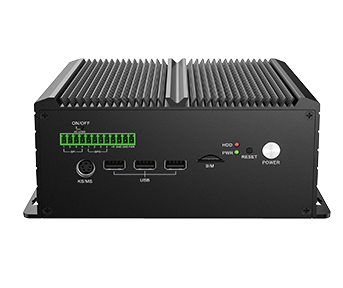

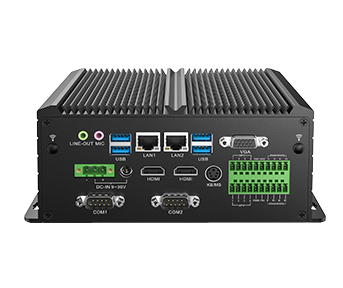

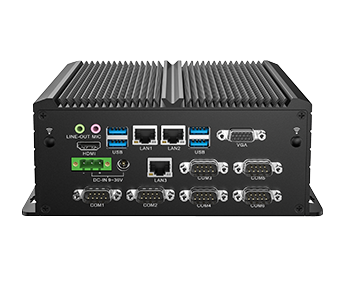

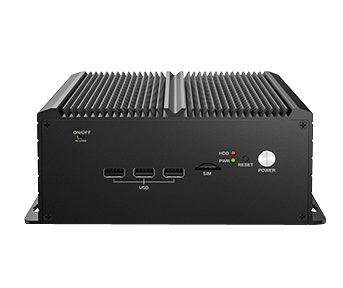

EIC-G300系列｜EIC-G380 嵌入式工控機
產品特點
技術參數
資料下載
● Intel J1900 / Core i5/Core i7 CPU
● 6 x RS-232 (4 x RS-232/485 帶隔離)
● 2 x GbE, 7 x USB , VGA, 2 x HDMI
● 1 x 2.5" SATA HDD / SSD, 1 x mSATA
● 1 x Mini PCIe、9V~36V DC 電源輸入
| 產品規(guī)格 | EIC-G380-L219 | EIC-G380-L265 | EIC-G380-L285 | EIC-G380-L287 |
|---|---|---|---|---|
| 處理器 | Intel Celeron J1900 up to 2.42 GHz | Intel Core I5-6360U up to 3.1 GHz | Intel Core I5-8265U up to 3.9 GHz | Intel Core I7-8565U up to 4.6 GHz |
| 內存 | 1 x DDR3L 1333 MHz SO-DIMM up to 8GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB | 2 x DDR4 2400 MHz SO-DIMM up to 32GB | 2 x DDR4 2133 MHz SO-DIMM up to 32GB |
| 顯示芯片 | By CPU | By CPU | By CPU | By CPU |
| 操作系統(tǒng) | Windows 7/8/10, WS7E, Ubuntu | Windows 7/8/10, WS7E, Ubuntu | Windows 10, Ubuntu | Windows 10, Ubuntu |
| 硬盤 | 1 x 2.5" SATA HDD / SSD | 1 x 2.5" SATA HDD / SSD | 1 x 2.5" SATA HDD / SSD | 1 x 2.5" SATA HDD / SSD |
| SDD | 1 x mSATA | 1 x mSATA,1 x M.2 2260/2280 NVME PCIEx4 | 1 x mSATA,1 x M.2 2260/2280 NVME PCIEx4 | 1 x mSATA,1 x M.2 2260/2280 NVME PCIEx4 |
| 串口 | 6 x RS-232(4 x RS-232/485 帶隔離) | 6 x RS-232(4 x RS-232/485 帶隔離) | 6 x RS-232(4 x RS-232/485 帶隔離) | 6 x RS-232(4 x RS-232/485 帶隔離) |
| USB | 6 x USB 2.0, 1 x USB3.0 | 3 x USB 2.0, 4 x USB3.0 | 3 x USB 2.0, 4 x USB3.0 | 3 x USB 2.0, 4 x USB3.0 |
| 網口 | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE | 2 x Intel i211 for GbE |
| 顯示接口 | 1 x VGA, 2 x HDMI | 1 x VGA, 2 x HDMI | 1 x VGA, 2 x HDMI | 1 x VGA, 2 x HDMI |
| 音頻 | Line Out，Mic | Line Out，Mic | Line Out，Mic | Line Out，Mic |
| GPIO | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT | 4 x IN, 4 x OUT |
| PS/2 | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse | 1 x PS/2 Keyboard Mouse |
| 遠程開關 | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW | 1 x 2Pin Remote SW |
| Mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe | 1 x full-size mini PCIe |
| SIM | 1 x SIM | 1 x SIM | 1 x SIM | 1 x SIM |
| USB KEY | 1 x USB2.0 | 1 x USB2.0 | 1 x USB2.0 | 1 x USB2.0 |
| 天線接口 | 2 x SMA-type | 2 x SMA-type | 2 x SMA-type | 2 x SMA-type |
| 輸入電壓 | DC 9~36V | DC 9~36V | DC 9~36V | DC 9~36V |
| 認證 | CE, FCC Class A | CE, FCC Class A | CE, FCC Class A | CE, FCC Class A |
| 工作溫度 | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) | -10 ~ 60℃(SSD) |
| 存儲溫度 | -40 ~ 85℃ | -40 ~ 85℃ | -40 ~ 85℃ | -40 ~ 85℃ |
| 相對濕度 | 10 ~ 95% (無冷凝) | 10 ~ 95% (無冷凝) | 10 ~ 95% (無冷凝) | 10 ~ 95% (無冷凝) |
| 外殼 | 鋁合金 | 鋁合金 | 鋁合金 | 鋁合金 |
| 安裝方式 | 壁掛式 | 壁掛式 | 壁掛式 | 壁掛式 |
| 尺寸 (寬 x 深 x 高) | 196x148x80mm | 196x148x80mm | 196x148x80mm | 196x148x80mm |
| 重量 | 1.5kg | 1.5kg | 1.5kg | 1.5kg |
